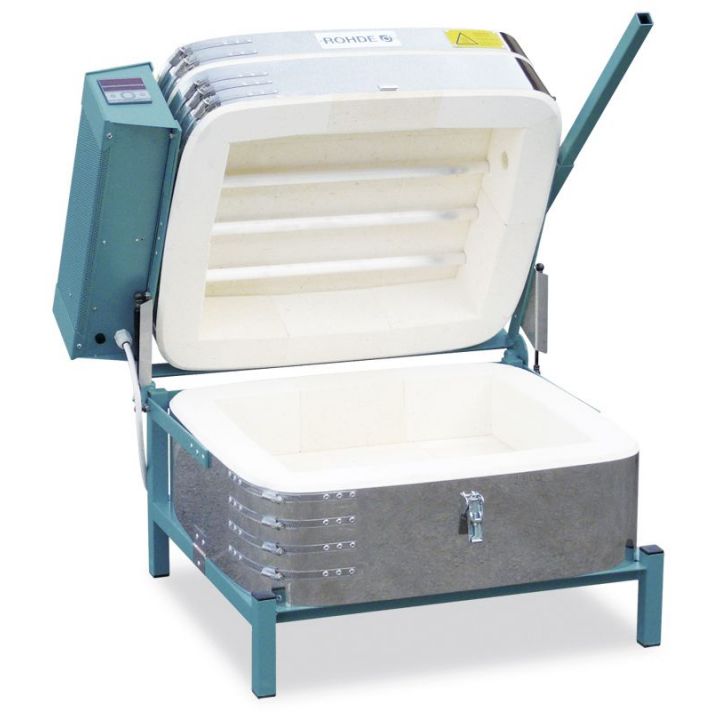

Rohde Fusing oven 40/230V - 3,6 KW incl. Controller ST 411
Rohde glasoven voor fusing en brandschilderen
Binnenmaat: 500 x 400 x 210 mm Buitenmaat: 850 x 650 x 510 mm
Glasoven voor fusing en brandschilderen
Rohde Fusing Kiln 40L/230 V - 2,9 KW incl. Controller ST 411
Int. dimensions 500 x 400 x 210 mm
Ext. dimensions 850 x 650 x 510 mm
Tmax.= 950°C-1/N/PE 230V, 50 HZ, 13 A - 2,9 KW
Wired controller Stafford ST 411 ( on request we can supply the ST 411 PV - if you want to operate the stove via a PhotoVoltaic system )
Kiln:
- Insulation structure made of lightweight firebricks, free of ceramic fibres
- High-quality infrared radiators
- Low external temperatures at maximum temperature 950°C
- Power control effected by silent, low-wear solid-state relays with external cooling element
- Lid easy-to-open supported by gas pressure springs
Controller:
Control system with USB interface including USB stick
- 1-zone control
- 32 firing programs with 32 firing segments each
- 1 regulated heating / cooling ramp and holding time per segment
- Hold times up to 99:59 h
- Heating rates between 1 and 999 ° C / h or "FULL"
- USB interface for data logging
- CPC14 plug connection, assignment: ROHDE standard
- WiFi module for connection to the ROHDEapp
- 1x freely programmable switching output
